61 31 043 Removing and installing/replacing roof switch cluster (complete with cover) (roof function center)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Follow notes for handling light bulbs (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Carefully unclip cover (1) with special tool 00 9 323 and remove.

Installation note:

Ensure cover (1) is correctly seated.

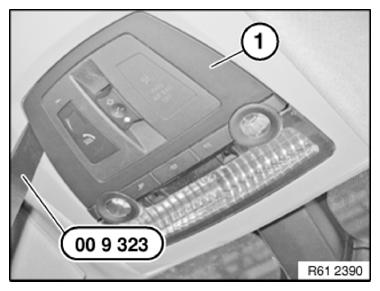

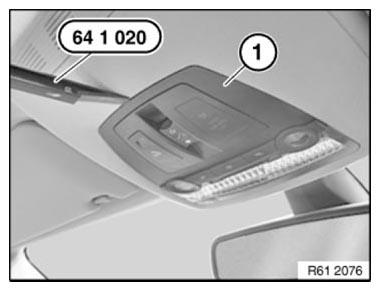

Fig 1: Identifying Roof Switch Cluster Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lugs (1) with suitable tool while carefully lifting out with special tool 00 9 325 .

Remove roof switch cluster (2) in direction of arrow.

Unlock plug connections underneath and disconnect.

Installation note:

Retaining lugs (1) must not be damaged.

Make sure roof switch cluster (2) is correctly fitted.

INITIALIZE slide/tilt sunroof if necessary.

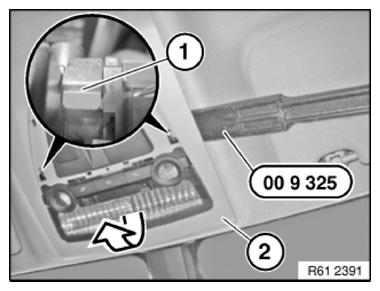

Fig 2: Removing Roof Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).
After installation, read out fault memory and if necessary delete entry.

Special tools required:

64 1 020

IMPORTANT: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Carefully unclip cover (1) with special tool 64 1 020 and remove.

Fig 1: Identifying Roof Switch Cluster Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove roof switch cluster (2) in direction of arrow.

Disconnect plug connections underneath.

Installation note:

Make sure roof switch cluster (2) is correctly seated.

Ensure cover (1) is correctly seated.

Installation note:

If necessary, initialize slide/tilt sunroof

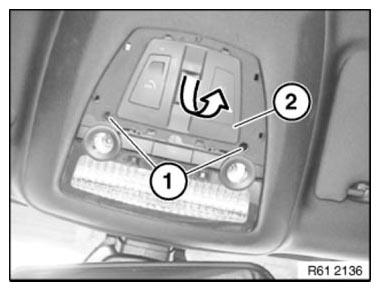

Fig 2: Removing Roof Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the emergency call button results in fault entries in the telephone control unit (limitation in the emergency call system).
After fitting, read out fault memory and if necessary delete entries.
