61 67 100 Removing and installing/replacing left high-pressure nozzle of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER PANEL .

To prevent excess escape of washer fluid, seal off end of high pressure line with special tool 13 3 010.

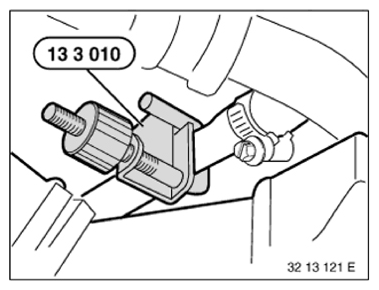

Fig 1: Sealing Off End Of High Pressure Line With Special Tool 13 3 010

G09863801

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock high pressure line (1) and detach from high-pressure nozzle (2).

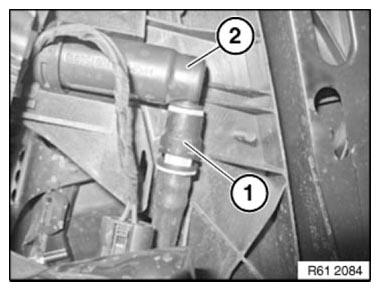

Fig 2: Identifying High Pressure Line With Nozzle

G06895146

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock high-pressure nozzle (1) and remove in direction of arrow rearwards.

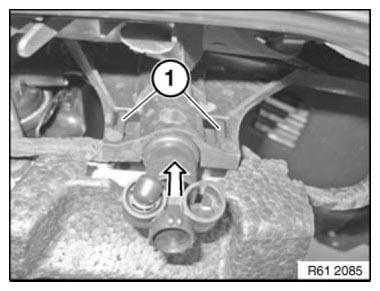

Fig 3: Removing High-Pressure Nozzle

G06895147

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure guide (1) is correctly seated.

New washer jets are already preset.

Top up washer fluid.

Carry out function check.

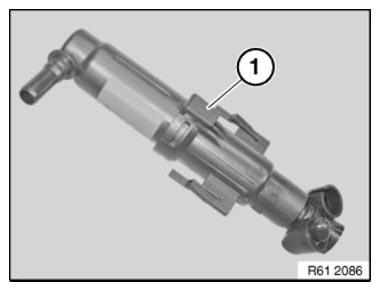

Fig 4: Identifying Washer Jets Guide
