61 67 010 Removing and installing/replacing washer pump for headlight cleaning system
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:

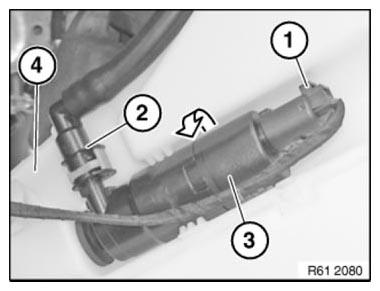

Unfasten plug connection (1) and disconnect.
Unlock hose pipe (2) and detach from washer pump for headlight cleaning system (3).
Turn washer pump for headlight cleaning system (3) in direction of arrow and pull upwards out of fluid tank for windshield washer system (4).
