61 35 107 Removing and installing or replacing junction box electronics

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Partially remove POWER DISTRIBUTION BOX FOR PASSENGER COMPARTMENT .

Release screws (1) on junction box electronics (2).

Tightening torque 61 14 2AZ .

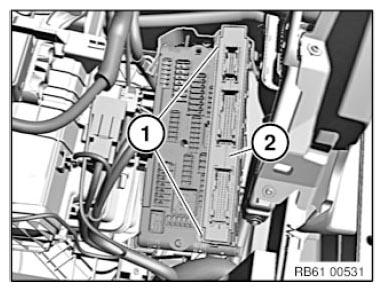

Fig 1: Identifying Junction Box Electronics And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Pull junction box electronics (2) out of bracket.

Installation note:

Make sure junction box electronics and plug connections (1) are correctly seated.

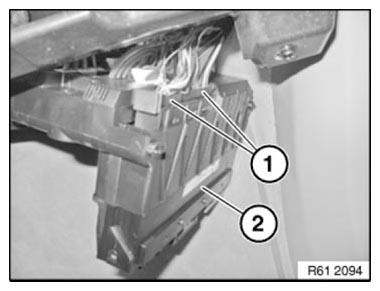

Fig 2: Identifying Junction Box Electronics With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Delete transport mode.
