61 35 080 Removing and installing/replacing control unit/module for left or right seat adjustment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Clamp off BATTERY NEGATIVE LEAD

Unclip cover in upper rail at front (1) in direction of arrow and remove.

Fig 1: Removing Upper Rail Cover At Front

G04742844

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock latch mechanisms (1).

Feed out control unit for seat adjustment (2) in direction of arrow.

Fig 2: Removing Control Unit For Seat Adjustment

G06895114

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove control unit for seat adjustment (2).

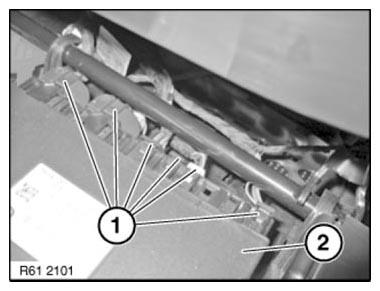

Fig 3: Identifying Control Unit For Seat Adjustment And Plug Connection

G06895115

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure mounts (1) and retaining tabs (2) of control unit for seat adjustment (3) are correctly seated.

Fig 4: Identifying Control Unit For Seat Adjustment, Mounts And Retaining Tabs

G04768626

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle PROGRAMMING/ENCODING .
