61 12 062 Replacing wiring harness for front bumper
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on HANDLING WIRING HARNESSES
and cables.
Necessary preliminary tasks:
- Remove FRONT BUMPER TRIM .

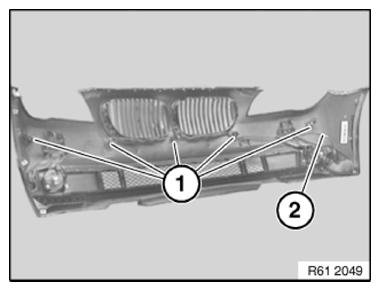

Disconnect plug connections (1) on five ultrasonic transducers.
Unclip wiring harness (2) from bumper trim.
Remove wiring harness (2).
Remove ultrasonic transducers (PDC). See FRONT LEFT TRANSDUCER , FRONT RIGHT TRANSDUCER , FRONT CENTER LEFT TRANSDUCER , and FRONT CENTER RIGHT TRANSDUCER .
Installation:
Make sure wiring harness (2) is laid correctly.
