33 11 151 Replacing shaft seal for drive flange left or right: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 5 010
- 32 1 060
- 33 1 308
- 33 5 130
- 33 5 140
Necessary preliminary tasks:
- Remove REAR AXLE FINAL DRIVE .

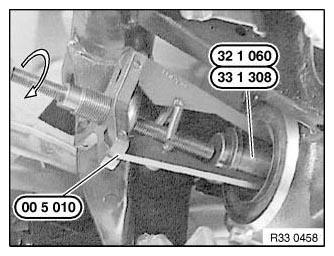

Use special tools 00 5 010 and 32 1 060/33 1 308 to remove radial shaft seal.
NOTE:
The installation protective ring (1) serves to protect the sealing lips on radial shaft seal (2) when the output shaft is being installed.
IMPORTANT:
Installation: protective ring (1) must not slip out of radial shaft seal!
Coat housing of sheet metal flange of radial shaft seal with approved FINAL DRIVE OIL .
Drive in radial shaft seal as far as it will go with following special tools (depending on rear axle final drive/outer diameter).
33 5 130
33 5 140
Remove special tool.
Open installation protective ring (1).
IMPORTANT:
High installation forces indicate that the output shaft spline teeth are damaged or deformed!
Check gearing, replace damaged parts if necessary.
Check dust plate (1) for damage, renew if necessary.
Replace circlip (2).
Coat highlighted contact surface (3) of output shaft with approved FINAL DRIVE OIL .
Check gearing, replace damaged parts if necessary.
Check dust plate (1) for damage, renew if necessary.
Replace circlip (2).
Coat highlighted contact surface (3) of output shaft with approved FINAL DRIVE OIL .
Insert output shaft into rear axle final drive.
Pull out assembly protection ring at lug (1) until one of the two predetermined breaking points gives.
After installation
- Check REAR TRANSMISSION OIL LEVEL , correct if necessary.
