33 17 004 Replacing all rubber mounts for rear axle final drive mounting at front

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 021
33 0 022
33 0 023
33 0 024
33 0 025
33 0 026
33 0 027
33 5 105

IMPORTANT: To ensure that the rubber mounts of the rear axle differential are securely seated, observe a waiting period of 2 h after pressing in the rubber mounts or before taking the first journey.
Failure to comply with this requirement may cause the rubber mounts to drift in the rear axle support!

Necessary preliminary tasks:

Remove REAR AXLE FINAL DRIVE .

Pull out rubber mount with special tools 33 0 026, 33 0 027, 33 0 022 and 33 0 021.

NOTE: Use ratchet ring spanner 33 5 105.

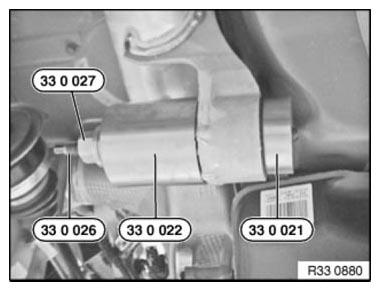

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and rubber mount (1) with Circo Light.

Align rubber mount (1) by means of notch (2).

Protrusion (3) points to rear final drive unit.

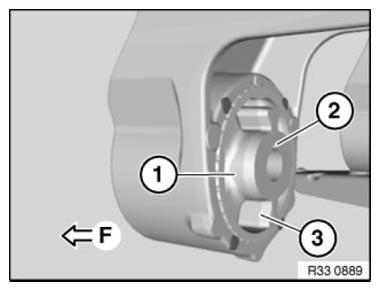

Fig 2: Identifying Rubber Mount, Notch, And Protrusion

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 0 025.

Pull on rubber mount (1) with special tools 33 0 026, 33 0 027, 33 0 024 and 33 0 023 as far as it will go.

NOTE: Use ratchet ring spanner 33 5 105.

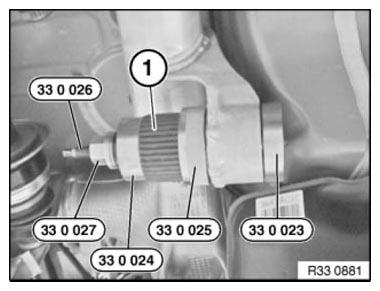

Fig 3: Inserting Rubber Mount In Special Tool 33 0 025

Courtesy of BMW OF NORTH AMERICA, INC.
