Installation note on spur gear

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
Tighten collar bolt and compression spring by hand.

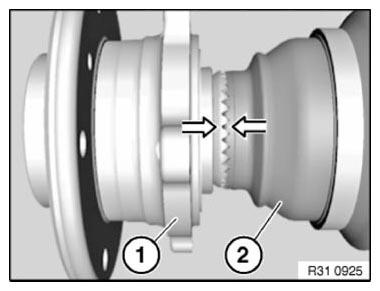

Fig 1: Fitting Wheel Bearing And Output Shaft
Courtesy of BMW OF NORTH AMERICA, INC.
Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
Once a form-fit has been ensured, tighten to final specified torque.
Tightening torque 31 60 2AZ
