31..... Overview of front axle differential/output shafts

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

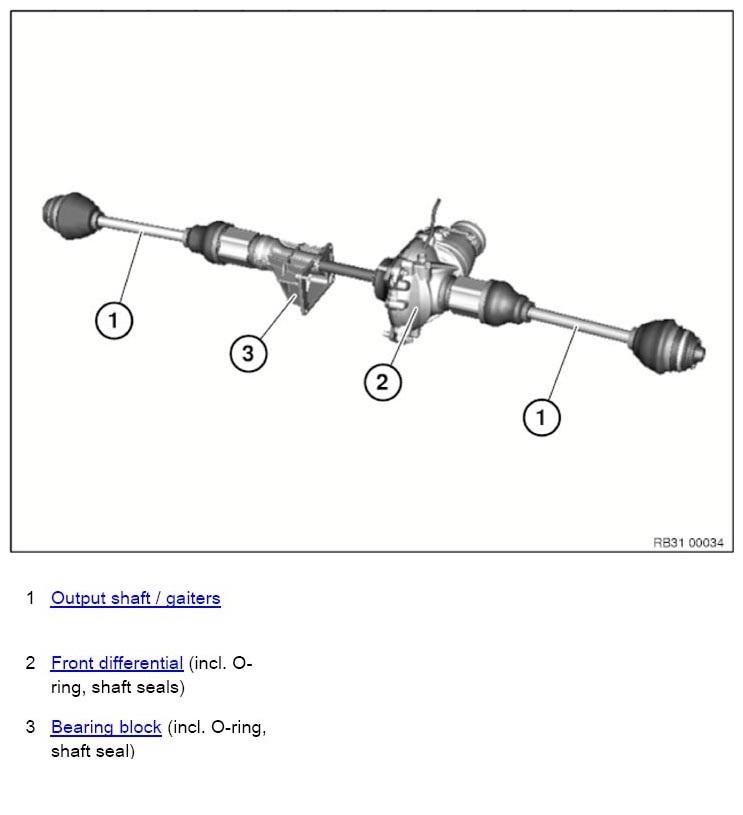

Fig 1: Overview Of Front Axle Differential/Output Shafts
G09877115Courtesy of BMW OF NORTH AMERICA, INC.
