31 51 015 Replacing shaft seal for left output shaft

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 5 130

Necessary preliminary work:

REMOVE left output shaft.

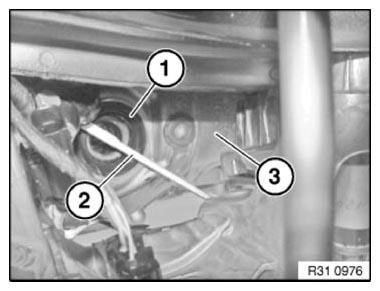

Lever shaft seal (1) out of front axle differential (3) with a fork wrench (2).

Fig 1: Removing Shaft Seal Out Of Front Axle Differential Using Fork Wrench

G09877251

Courtesy of BMW OF NORTH AMERICA, INC.

Install radial shaft seal

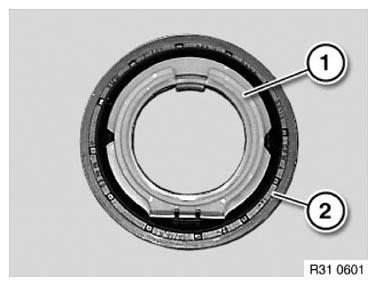

NOTE: The installation protective ring (1) serves to protect the sealing lips of the radial shaft seal (2) when the output shaft is being installed.

Fig 2: Identifying Protective Ring For Sealing Lips Of Radial Shaft Seal

G09877252

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Drive in shaft seal with special tool 31 5 130 up to limit position.

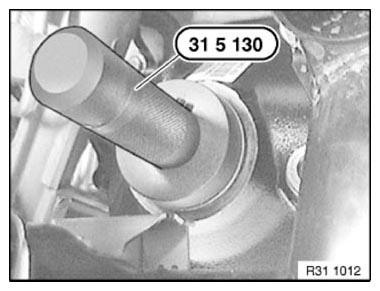

Fig 3: Driving-In Shaft Seal Using Special Tool (31 5 130)

G09877253

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Check FRONT AXLE GEARBOX OIL LEVEL , correct if necessary.
