31 51 065 Replacing O-ring for bearing block
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove bearing support. See procedure for VEHICLES WITH ENGINE N55 or VEHICLES WITH ENGINE N63 .

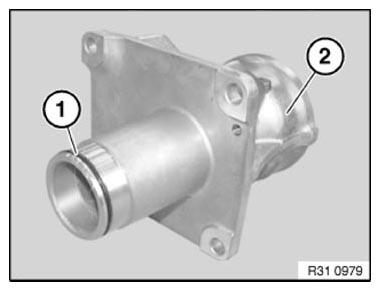

Lever out O-ring (1) from bearing block (2) with a screwdriver.
Installation note:
Insert O-ring (1) in groove and coat with front axle differential oil.
Replace RADIAL SHAFT SEAL .
