32 31 102 Replacing steering shaft sleeve (RWD vehicles)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove stiffening plate (all N73/S63 and F12 N63)
Remove EXHAUST SYSTEM (only N63/N73/S63)
Remove CATALYTIC CONVERTERS cylinders 5-8 (only N63/N73/S63)
Remove heat shield on bulkhead (only N63/N73/S63)
Release universal joint with corrugated tubing on bottom section of steering shaft. See UNIVERSAL JOINT WITH CORRUGATED TUBING (N55) or UNIVERSAL JOINT WITH CORRUGATED TUBING (N63) .
Remove trim panel for pedal assembly. See TRIM PANEL FOR PEDAL MECHANISM (ECE ONLY) or TRIM PANEL FOR PEDAL MECHANISM (US ONLY) .

Release bolts and remove bulkhead cover (1) with gaiter.

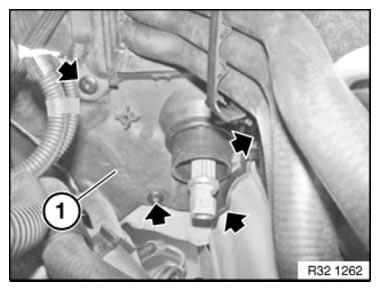

Fig 1: Identifying Bulkhead Cover With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Press in latch mechanism from the footwell and press out sleeve (1) from the bulkhead.

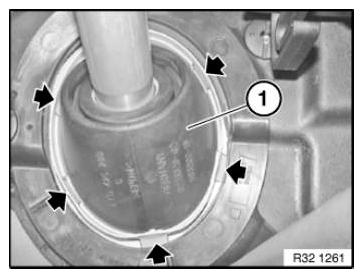

Fig 2: Identifying Sleeve And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position.

Press sleeve (1) from the engine compartment out into the bulkhead!

Latch mechanisms of the sleeve must noticeably engage.

-> To check: Visual inspection in footwell!

Spray sealing lip (2) of the sleeve with silicone spray.

Mount bulkhead cover.

Make sure sealing lip is correctly seated.

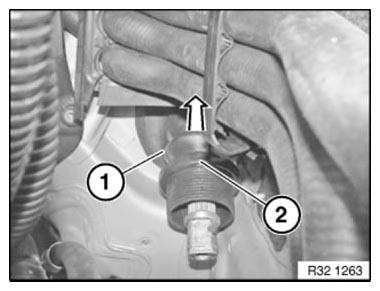

Fig 3: Identifying Sleeve And Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.
