32 43 521 Replace the Servotronic control unit

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect NEGATIVE BATTERY CABLE
Remove the floor trim from the luggage compartment
Remove the storage compartment from the luggage compartment

Release nuts (1) on the rear trim panel.

Unlock connector and remove.

Remove the control unit (2) from the bracket.

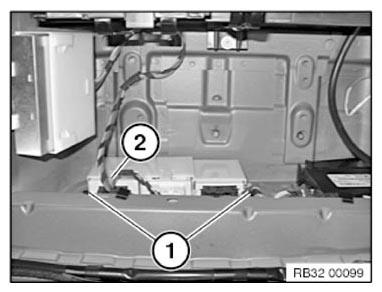

Fig 1: Identifying Control Unit And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Carry out PROGRAMMING/ENCODING
