33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

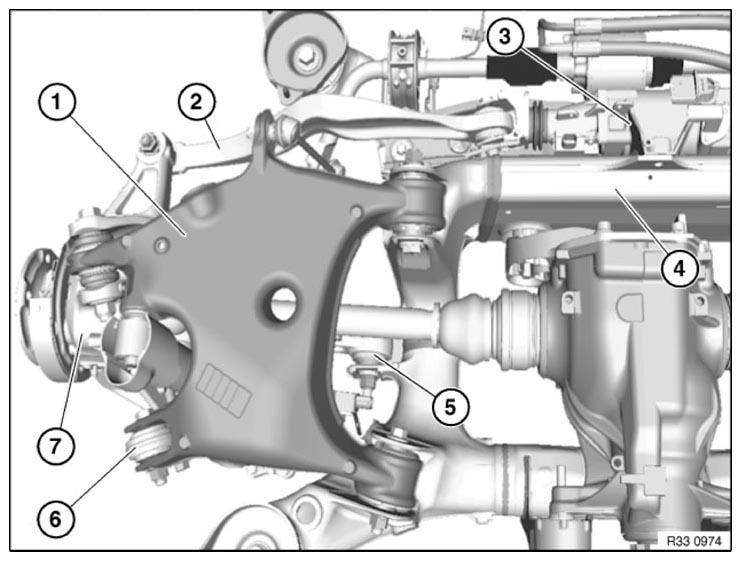

Fig 1: Identifying Specified Rear Axle Components

Courtesy of BMW OF NORTH AMERICA, INC.

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link/wheel carrier
- Guide arm to rear axle carrier/HSR unit
- Wishbone to rear axle support/wheel carrier
Replacement of following parts:
1. Swinging arm
2. Guide arm
3. HSR actuator
4. Rear axle support
5. Wishbone
6. Integral link
7. Wheel carrier
