SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

02 02 12 (793)

Consisting of:

  1. 25 = 2333697 Accessories
    NOTE: Test cable labelling available as an addition to the test kit case 83 30 2 299 380

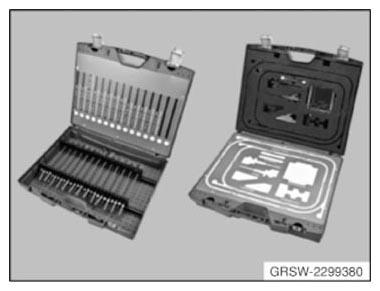

    Fig 1: Identifying Test Set (2299380)
    G09870059Courtesy of BMW OF NORTH AMERICA, INC.
  2. 24 = 2333696 Test cable
    NOTE: Test cable set 4.0 mm, round, available as an addition to the test kit case 83 30 2 299 380
  3. 23 = 2333695 Test cable
    NOTE: Test cable set 3.50 mm, round, available as an addition to the test kit case 83 30 2 299 380
  4. 22 = 2333694 Test cable
    NOTE: Test cable set 2.50 mm, round, available as an addition to the test kit case 83 30 2 299 380
  5. 21 = 2333625 Test cable
    NOTE: Test cable set 1.50 mm, round, available as an addition to the test kit case 83 30 2 299 380
  6. 20 = 2333623 Test cable
    NOTE: Test cable set 0.80 mm, round, test cable set available as an addition to the test kit case 83 30 2 299 380
  7. 19 = 2333619 Test cable
    NOTE: Test cable set 9.50 x 1.20 mm available as an addition to the test kit case 83 30 2 299 380
  8. 18 = 2333615 Test cable
    NOTE: Test cable set 6.30 x 0.80 mm available as an addition to the test kit case 83 30 2 299 380
  9. 17 = 2333584 Test cable
    NOTE: Test cable set 5.20 x 0.63 mm available as an addition to the test kit case 83 30 2 299 380
  10. 16 = 2333580 Test cable
    NOTE: Test cable set 4.80 x 0.80 mm available as an addition to the test kit case 83 30 2 299 380
  11. 15 = 2329156 Test cable
    NOTE: Test cable set 2.80 x 0.80 mm available as an addition to the test kit case 83 30 2 299 380
  12. 14 = 2329116 Test cable
    NOTE: Test cable set 1.50 x 0.60 mm available as an addition to the test kit case 83 30 2 299 380
  13. 13 = 2329115 Test cable
    NOTE: Test cable set 1.20 x 0.60 mm available as an addition to the test kit case 83 30 2 299 380
  14. 12 = 2328993 Test cable
    NOTE: Test cable set 0.63 x 0.63 mm available as an addition to the test kit case 83 30 2 299 380
  15. 10 = 2299408 Terminal
    NOTE: Crocodile clips available as an addition to the test kit case 83 30 2 299 380
  16. 9 = 2299407 Test probe
    NOTE: Test probes available as an addition to the test kit case 83 30 2 299 380
  17. 8 = 2299404 Adapter
    NOTE: Flat-bladed fuse adapter kit available as an addition to the test kit case 83 30 2 299 380
  18. 7 = 2299400 T-piece
    NOTE: T-piece set available as an addition to the test kit case 83 30 2 299 380
  19. 6 = 2299399 Measuring cable
    NOTE: Measuring cable available as an addition to the test kit case 83 30 2 299 380
  20. 5 = 2299394 Gauge
    NOTE: Gauge to determine which test cable should be used; available as an addition to the test kit case 83 30 2 299 380
  21. 3 = 2299389 Test cable

    Note:

  22. 1 = 2299383 Test cable

    Note:

  23. 11 = 2327537 Accessories

    Note:

  24. 4 = 2299392 Test cable

    Note:

  25. 2 = 2299386 Test cable

    Note:
