SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 06 94 (801)

Consisting of:

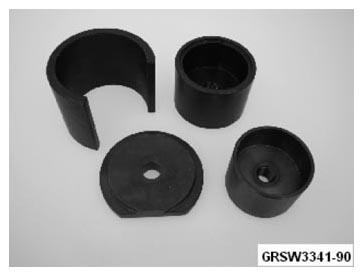

Fig 1: Identifying Tool Set (33-4190)
G08463125Courtesy of BMW OF NORTH AMERICA, INC.
  1. 4 = 0492435 Synchronizing key
    NOTE: For installing
  2. 3 = 0492434 Synchronizing key
    NOTE: For removing
  3. 2 = 0492433 Plate
    NOTE: (support plate) For removing and fitting
  4. 1 = 0492432 Pipe
    NOTE: (support tube) For removing and fitting
