SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 18 08 (482)

Consisting of:

  1. 2 = 0496403 Screw
    NOTE: (Countersunk screws M6x20 (4 pieces)) Deletion, only available via tool set

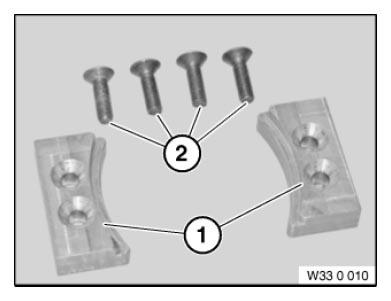

    Fig 1: Identifying Synchronizing Key (33-0010)
    G06876317Courtesy of BMW OF NORTH AMERICA, INC.
  2. 1 = 0496402 Synchronizing key
    NOTE: (Thrust pieces (2 pieces)) Deletion, only available via tool set
