0491982 315090 Adapter Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Adapter) For pulling off the taper roller bearings from the equalization housing in the front axle differential

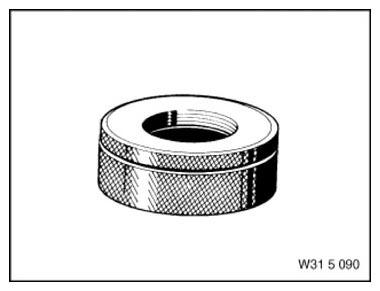

Fig 1: Identifying Adapter Mechanical Tool (0491982)
G09869485Courtesy of BMW OF NORTH AMERICA, INC.
