0491978 315070 Device Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For determining the installation dimension at the bevel drive pinion in the front axle differential

Consisting of:

  1. 2 = 0491980 Washer
    NOTE: (Measuring disc 7 mm)
  2. 1 = 0491979 Bridge
    NOTE: (Measuring bridge)

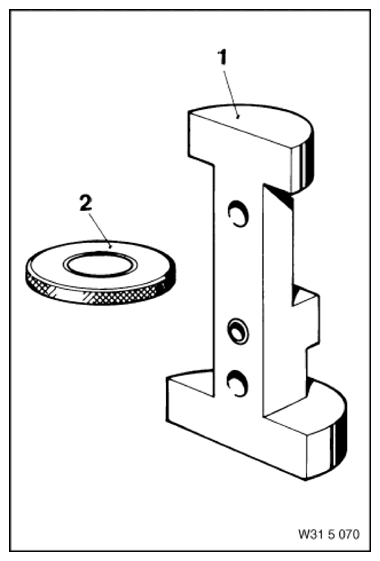

    Fig 1: Identifying Device Mechanical Tool (0491978)
    G09869533Courtesy of BMW OF NORTH AMERICA, INC.
