SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 16 11 (738)

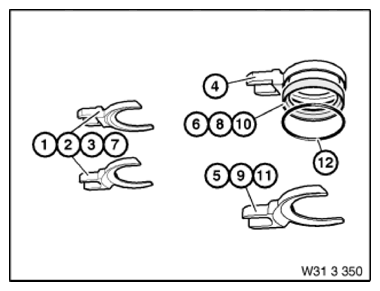

Fig 1: Identifying Holder Mechanical Tool (0493560)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

6 = 0493570 Ring
NOTE: (Centering ring) As of 08/2011, available under new item number 83 30 2 213 032, see SI 01 16 11 (738).
5 = 0493569 Holder
NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 034, see SI 01 16 11 (738).
4 = 0493568 Ring
NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 031, see SI 01 16 11 (738).
3 = 0493567 Holder
NOTE: Clamping plate (1 piece) As of 08/2011, available under new item number 83 30 2 213 029, see SI 01 16 11 (738).
2 = 0493566 Holder
NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 026 as of July 2011, see SI 01 16 11 (738).
1 = 0493561 Holder
NOTE: Clamping plate (1 piece), available under new order number 83 30 2 213 024 as of July 2011, see SI 01 16 11 (738).
11 = 0494804 Holder
NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 041, see SI 01 16 11 (738).
10 = 0494625 Holder
NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 039, see SI 01 16 11 (738).
9 = 0494624 Ring
NOTE: (Spring retainer ring) As of 08/2011, available under new item number 83 30 2 213 038, see SI 01 16 11 (738).
8 = 0494397 Ring
NOTE: (Insertion ring) As of 08/2011, available under new item number 83 30 2 213 033, see SI 01 16 11 (738).
7 = 0494053 Holder
NOTE: (Spring retainer) As of 08/2011, available under new item number 83 30 2 213 036, see SI 01 16 11 (738).
