SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 14 01 (766)

Consisting of:

  1. 0494189 Bush
    NOTE: Available only as a complete tool set 31 3 030 = 83 30 0 494 187 - as of 09.12.2011

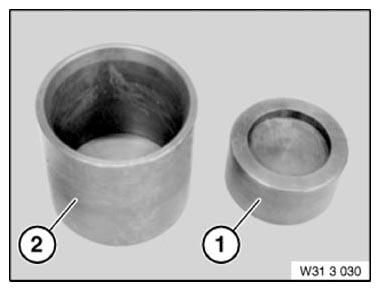

    Fig 1: Identifying Tool (0494187)
    G09869594Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0494188 Bell housing
    NOTE: Available only as a complete tool set 31 3 030 = 83 30 0 494 187 - as of 09.12.2011
