0491858 311008 Bush Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Bush) For installing the rubber mount in the front axle support and thrust piece, for removing and installing the rubber mount in the wishbones

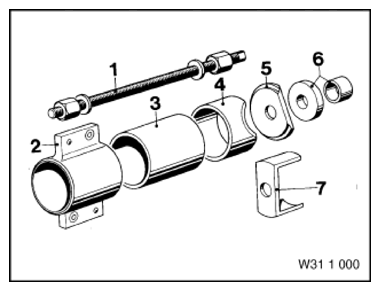

Fig 1: Identifying Bush Mechanical Tool (0491858)
G09869527Courtesy of BMW OF NORTH AMERICA, INC.
