Storage Location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Consisting of:

9 = 0491859 Bush
NOTE: (Bush) Deletion, only available via tool set

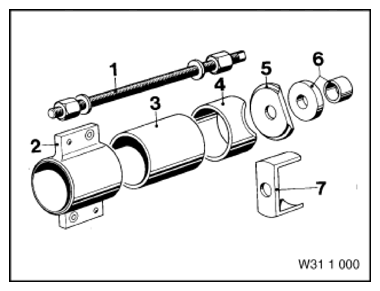

Fig 1: Identifying Device Mechanical Tool (0491850)
Courtesy of BMW OF NORTH AMERICA, INC.
8 = 0491858 Bush
NOTE: (Bush) For installing the rubber mount in the front axle support and thrust piece, for removing and installing the rubber mount in the wishbones
7 = 0491857 Bush
NOTE: For installing the rubber mount in the front axle support - series: E12
6 = 0491856 Synchronizing key
NOTE: For removing and installing the rubber mount in the front axle support - series: E12
5 = 0491855 Washer
NOTE: (Flanged washer) For centering of threaded spindle and as a support disc for removing and installing the rubber mount in the front axle support and in the wishbones - series: E12
4 = 0491854 Pipe
NOTE: (Support tube) For installing the rubber mount in the front axle support - series: E12
3 = 0491853 Bush
NOTE: (Bush) For removing the rubber mount from the front axle support, for removing and installing the rubber mount in the wishbones and for press-fitting the taper roller bearing of the rear axle differential housing
2 = 0491852 Bush
NOTE: (Slip bush) For installing the rubber mount in the front axle support
1 = 0491851 Spindle
NOTE: With 2 nuts and 2 washers
