0496712 310002 Basic body Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Replaced and under new set 83 30 2 210 778.

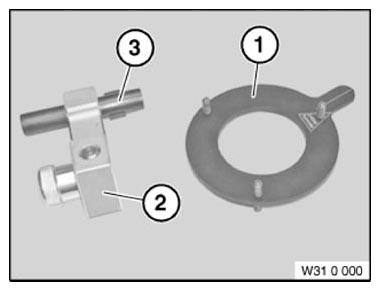

Fig 1: Identifying Basic Body Mechanical Tool (0496712)
G09869518Courtesy of BMW OF NORTH AMERICA, INC.
