2210778 Tool set Minimum set: Mechanical tools Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

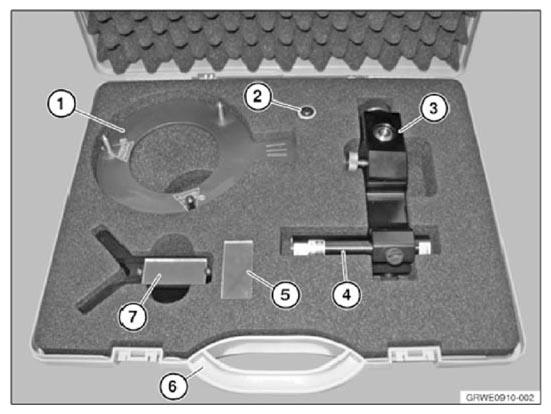

Fig 1: Identifying Tool Set (2210778)

Courtesy of BMW OF NORTH AMERICA, INC.

2210779

3 = 2210785
NOTE: Locating fixture

NOTE: For attaching and aligning the laser on the spring strut.
2 = 0496962
Battery

NOTE: commercially available battery 3V lithium (CR 123A)
1 = 2210783
Gauge

NOTE: For positioning the support bearing.
