SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 07 (334)

Consisting of:

  1. 4 = 0496116 Spindle

    Note:

  2. 3 = 0496115 Screw

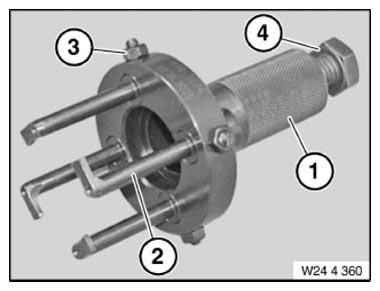

    Fig 1: Identifying Puller (0495599)
    G09869406Courtesy of BMW OF NORTH AMERICA, INC.
    NOTE: Discontinued, can only be ordered using complete tool
  3. 2 = 0496114 Claw
    NOTE: (Claw (4 units)) discontinued, available as part of set of special tools only
  4. 1 = 0496113 Basic body
    NOTE: Discontinued, can only be ordered using complete tool
