SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 07 (334)

Consisting of:

  1. 4 = 0495572 Hook wrench

    Note:

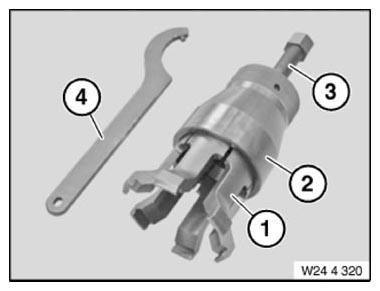

    Fig 1: Identifying Puller (0495496)
    G09869405Courtesy of BMW OF NORTH AMERICA, INC.
  2. 3 = 0495571 Spindle

    Note:

  3. 2 = 0495570 Ring
    NOTE: (Retaining ring)
  4. 1 = 0495569 Basic body

    Note:
