SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 11 02 (908)

Consisting of:

6 = 0496061 Shaped element

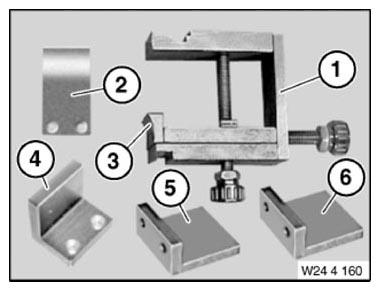

Fig 1: Identifying Holder (0494451)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Transmission: GA6L45R (GM6) in E83/N52K Deletion, only available via tool set
5 = 0494965 Shaped element
NOTE: Transmission: GA6 HP19 in E87, E90 Deletion, only available via tool set
4 = 0494622 Shaped element
NOTE: For converter variant M54 Deletion, only available via tool set
2 = 0494479 Shaped element
NOTE: For converter version N73 discontinued, available as part of set of special tools only
1 = 0494478 Basic body
Note:
3 = 0494477 Shaped element
NOTE: For converter variant M57TU Deletion, only available via tool set
