0491734 244133 Blade Minimum set: Mechanical tools Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Blade) Gearbox: A4S 310R and A5S 390G Deletion, only available via tool set

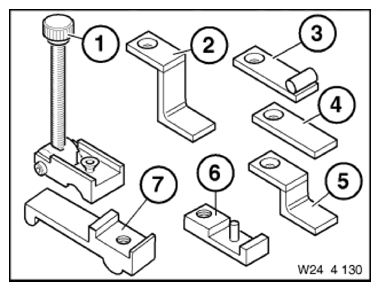

Fig 1: Identifying Blade (0491734)
G09869283Courtesy of BMW OF NORTH AMERICA, INC.
