SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 14 01 (766)

Consisting of:

  1. 4 = 0495597 Synchronizing key
    NOTE: Transmission: GA6L45R (GM6) Liquidation of existing inventory and then available only as a complete tool set 24 2 350 (83 30 0 494 201) - as of 06.06.2012.

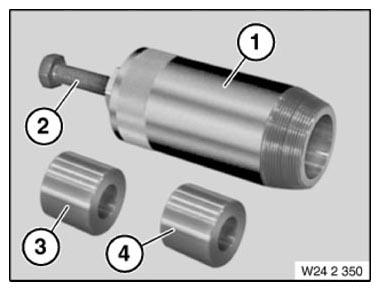

    Fig 1: Identifying Puller (0494201)
    G09869408Courtesy of BMW OF NORTH AMERICA, INC.
  2. 3 = 0494204 Synchronizing key

    Note:

  3. 2 = 0494203 Spindle
    NOTE: (Spindle M12 x 65 with ball head) discontinued, available as part of set of special tools only
  4. 1 = 0494202 Puller

    Note:
