SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 22 97 (239)

Consisting of:

4 = 0493160 Bush
NOTE: (Slip bush) For installing the piston in the cylinder of the intermediate plate

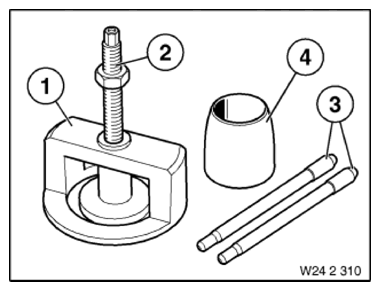

Fig 1: Identifying Device (0493156)
Courtesy of BMW OF NORTH AMERICA, INC.
3 = 0493159 Pin
NOTE: (Guide pin (2 pieces)) For fixing the gaskets and the intermediate plate on the intermediate case
2 = 0493158 Spindle
NOTE: (Spindle with pressure plate) Spindle M14x1.5, nut M14, pressure plate and washer/For removing and installing the spring cup
1 = 0493157 Plate
NOTE: (Pressure plate) For removing and installing the spring cup
