SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 01 95 (892)

Consisting of:

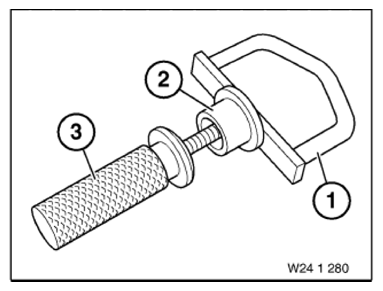

Fig 1: Identifying Device (0491686)
G09869338Courtesy of BMW OF NORTH AMERICA, INC.
  1. 3 = 0491689 Handle
    NOTE: (Centering handle)
  2. 2 = 0491688 Nut
    NOTE: (Knurled nut)

    Replaced by 00 9 120 (0 490 504)

  3. 1 = 0491687 Handle
    NOTE: (Handle)
