0494586 241181 Pipe Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Holding tube) discontinued, available as part of set of special tools only

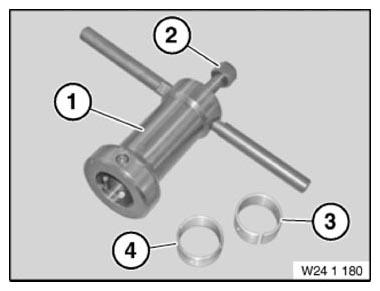

Fig 1: Identifying Pipe (0494586)
G09869398Courtesy of BMW OF NORTH AMERICA, INC.
