SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 06 92 (509)

Consisting of:

  1. 3 = 0493258 Screw
    NOTE: (Adjusting screw) Discontinuation and replaced by 23 4 050 (0 495 498)

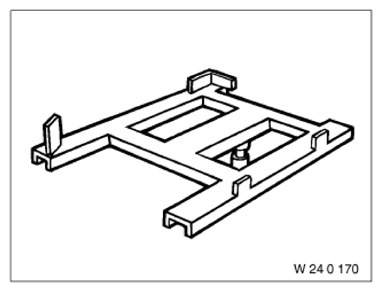

    Fig 1: Identifying Fixture (0491651)
    G09869345Courtesy of BMW OF NORTH AMERICA, INC.
