0491645 240151 Shaped part Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Shaped part) For mounting the transmission/transmissions: A5S 310Z

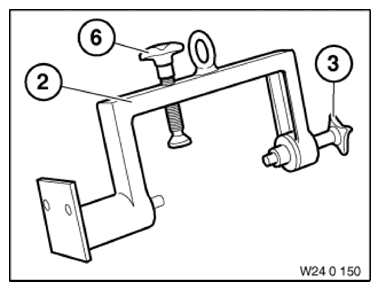

Fig 1: Identifying Shaped Part (0491645)
G09869426Courtesy of BMW OF NORTH AMERICA, INC.
