0491644 240150 Clip Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Mounting bracket) For mounting the transmission on the assembly stand

Consisting of:

3 = 0491649 Bush
NOTE: (Spacer bush for spindle) Transmissions: A4S 310R
3 = 0491648 Bolt
NOTE: (Mounting bolts)

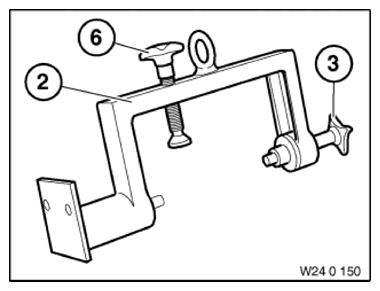

Fig 1: Identifying Clip (0491644)
Courtesy of BMW OF NORTH AMERICA, INC.
3 = 0491647 Spindle
NOTE: (Spindle with rotary handle)
2 = 0491646 Frame
NOTE: (Main frame)
3 = 0491645 Shaped part
NOTE: (Shaped part) For mounting the transmission/transmissions: A5S 310Z
6 = 0493913 Spindle
NOTE: With synchronizing key, transmission: All
