0491637 240090 Mandrel Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Replaced by: 83300491639

NOTE: (Drift) For punching the radial sealing ring in the front section of the transmission housing/Replaced by 24 0 110 (0 491 639) November 96

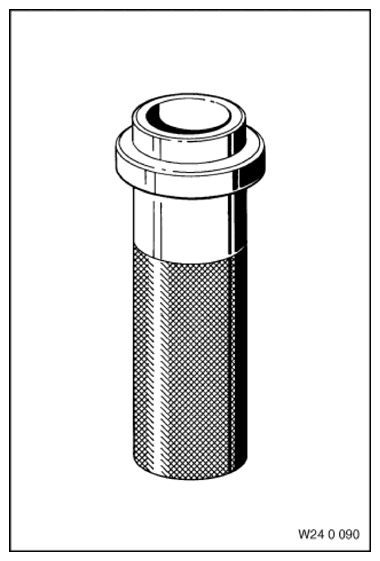

Fig 1: Identifying Mandrel (0491637)
G09869376Courtesy of BMW OF NORTH AMERICA, INC.
