Storage Location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Z7

Consisting of:

  1. 3 = 0491632 Shell
    NOTE: (Bearing shell) 2 pieces
  2. 2 = 0491631 Ring

    Note:

  3. 1 = 0491630 Washer

    Note:

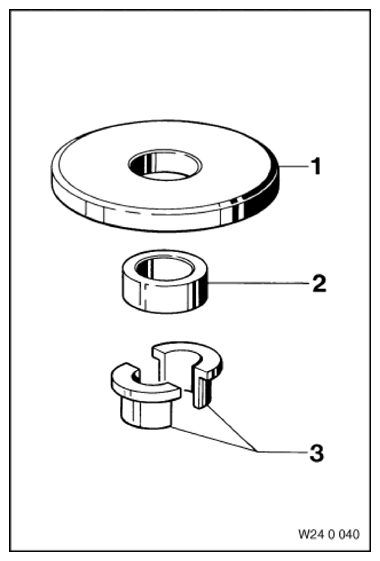

    Fig 1: Identifying Device (0491629)
    G09869327Courtesy of BMW OF NORTH AMERICA, INC.
