Storage Location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Consisting of:

9 = 0491627 Adapter
NOTE: For closing the feed and return lines when checking the main pressure/transmission: 3 HP 22 Deletion, only available via tool set
8 = 0491626 Screw
NOTE: (Screw) M18x1.5/For closing the engine oil feed pipe when checking the converter pressure/transmission: 3 HP 20 Deletion, only available via tool set

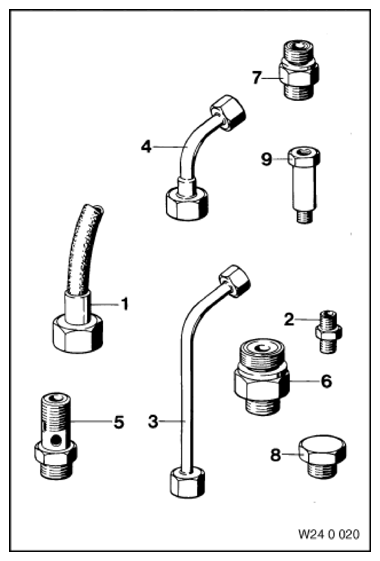

Fig 1: Identifying Connection (0491618)
Courtesy of BMW OF NORTH AMERICA, INC.
7 = 0491625 Connection
NOTE: (Connection) Reducer M20x1.5 - M18x1.5/For checking the main pressure (3 HP 12) an converter pressure (3 HP 20)/Transmission: 3 HP 12, 3 HP 20 discontinued, available as part of set of special tools only
6 = 0491624 Connection
NOTE: (Connection) Reducer M24x1.5 - 20x1.5/For checking the main pressure/transmission: 3 HP 20 Deletion, only available via tool set
5 = 0491623 Screw
NOTE: (Connection) Banjo bolt M20x1.5 - M18x1.5/For checking the converter pressure/transmission: 3 HP 12 Deletion, only available via tool set
4 = 0491622 Connection
NOTE: (Connection) Exhaust manifold, 90 mm Straightened length 90 mm Deletion, only available via tool set
3 = 0491621 Connection
NOTE: (Connection) Pipe bend, 145 mm, stretched length 145 mm/transmission: 4 HP 22, 4 HP 24 Deletion, only available via tool set
2 = 0491620 Connection
NOTE: (Connection) For checking the main pressure (3 HP 22, A5S 310Z) and clutch A (ZF transmission)/transmission: 3 HP 22, A5S 310Z, A5S 560Z and all ZF transmissions Deletion, only available via tool set
1 = 0491619 Hose
NOTE: (Line) Pressure hose 1.7 m, connection M12x1.5 - M14x1.5 outer thread/For checking the different converter pressures/transmission: A4S 310R, A4S 270R discontinued, available as part of set of special tools only
