0491601 233011 Spindle Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Adapter spindle)

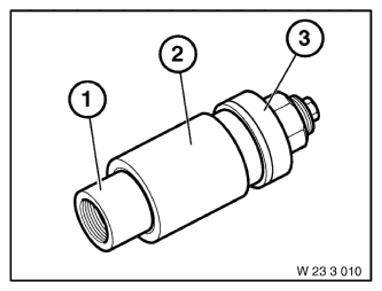

Fig 1: Identifying Spindle Mechanical Tool (0491601)
G09869167Courtesy of BMW OF NORTH AMERICA, INC.
