SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 07 90 (244)

Consisting of:

  1. 4 = 0491577 Shell
    NOTE: (Bearing shell) 2 pieces

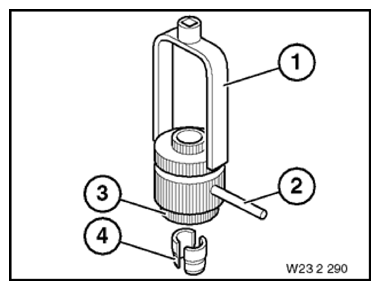

    Fig 1: Identifying Device Mechanical Tool (0491573)
    G09869198Courtesy of BMW OF NORTH AMERICA, INC.
  2. 3 = 0491576 Ring

    Note:

  3. 2 = 0491575 Fixture

    Note:

  4. 1 = 0491574 Frame
    NOTE: (Main frame)
