0491549 232050 Puller Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Rillex ball bearing puller 6205) For pulling out the grooved ball bearing from the transmission countershaft and the transmission output shaft

Consisting of:

3 = 0491552 Spindle
NOTE: (Pressure spindle)
2 = 0491551 Holding sleeve
NOTE: (Union sleeve)

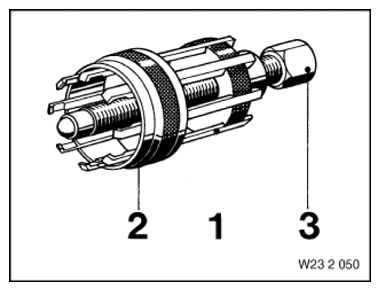

Fig 1: Identifying Puller Mechanical Tool (0491549)
Courtesy of BMW OF NORTH AMERICA, INC.
1 = 0491550 Claw
NOTE: (Claw for Rillex 6305 (8 pieces))
