0491514 231350 Device Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Pull-off device) For transmission housing rear section

Consisting of:

  1. 3 = 0491517 Screw
    NOTE: (Screw, long (2 x))
  2. 2 = 0491516 Screw
    NOTE: (Screw, short (2 x))
  3. 1 = 0491515 Plate

    Note:

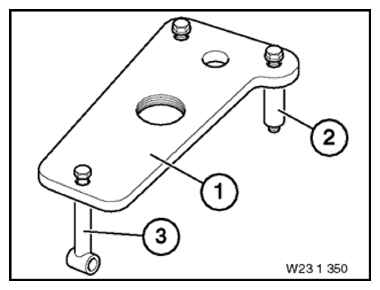

    Fig 1: Identifying Device Mechanical Tool (0491514)
    G09869212Courtesy of BMW OF NORTH AMERICA, INC.
