0491469 231050 Extractor Mechanical tool

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Extractor (Kukko)) For the 5th gear - and for the reverse gear wheel

Consisting of:

  1. 0491470 Claw

    Note:

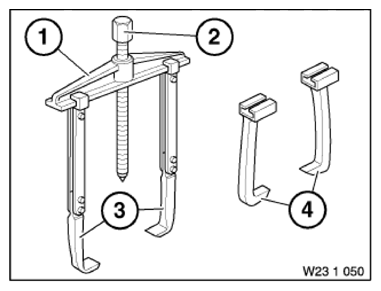

    Fig 1: Identifying Extractor Mechanical Tool (0491469)
    G09869216Courtesy of BMW OF NORTH AMERICA, INC.
