Storage Location

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Z5

Consisting of:

  1. 7 = 0491464 Synchronizing key
    NOTE: (Synchronizing key for Getrag transmission)
  2. 5 = 0491463 Pin
    NOTE: (Dowel pins for Getrag transmission)
  3. 5 = 0491462 Handle

    Note:

  4. 4 = 0491461 Synchronizing key
    NOTE: (Synchronizing key, short)

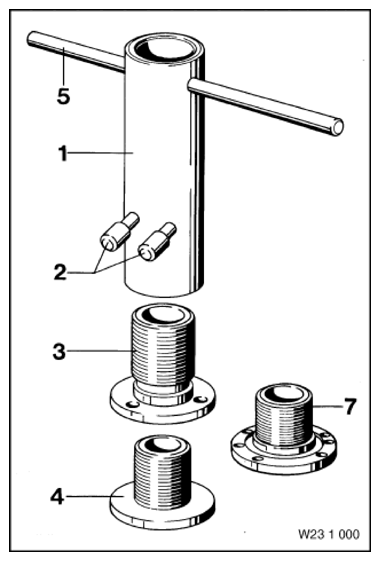

    Fig 1: Identifying Device Mechanical Tool (0491457)
    G09869204Courtesy of BMW OF NORTH AMERICA, INC.
  5. 3 = 0491460 Synchronizing key
    NOTE: (Synchronizing key, long)
  6. 2 = 0491459 Pin
    NOTE: (Dowel pin (2 x))
  7. 1 = 0491458 Holding sleeve

    Note:
