SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 14 99 (482)

Consisting of:

  1. 2 = 0493440 Spindle
    NOTE: (Spindle (2 pieces)) With handle Replaced by 24 0202 (0 495 489)

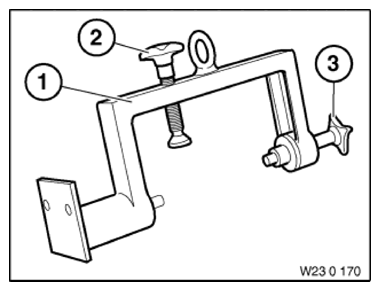

    Fig 1: Identifying Fixture Mechanical Tool (0493418)
    G09869217Courtesy of BMW OF NORTH AMERICA, INC.
  2. 1 = 0493439 Basic body
    NOTE: Replaced by 24
