SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 02 00 (551)

Consisting of:

  1. 2 = 0494569 Clip
    NOTE: (Holding bracket (not shown)) Transmission: S6S 420G
  2. 1 = 0494568 Fixture
    NOTE: Transmission: S6S 560G

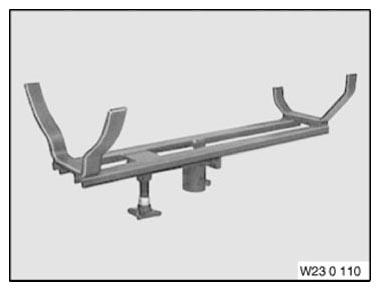

    Fig 1: Identifying Fixture Mechanical Tool (0493764)
    G09869219Courtesy of BMW OF NORTH AMERICA, INC.
