SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 12 94 (859)

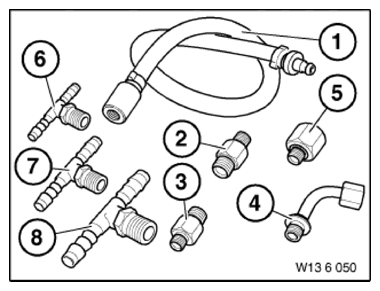

Fig 1: Identifying Adapter (13-0405)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

7 = 0491347 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
6 = 0491346 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
5 = 0491345 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
4 = 0491344 Adapter
NOTE: (Adapter)
3 = 0491343 Adapter
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
2 = 0491342 Adapter
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
1 = 0491341 Hose
NOTE: (Connecting hose) For connecting reducers 13 6 052, 13 6 053, 13 6 55 and adapters 11 4 050, 11 4 160, 11 4 170, 13 5 131 to BMW DIS
4 = 0495067 T-piece
NOTE: Liquidation of existing inventory and then available only as a complete tool set 13 6 050 (83 30 0 491 340) - as of 19.01.12
