SI number

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

01 25 04 (155)

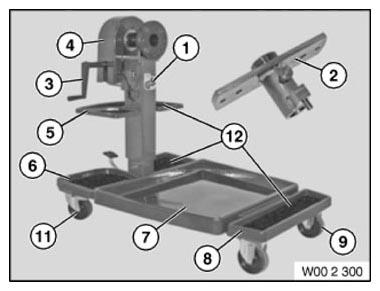

Fig 1: Identifying Assembly Stand (0495187)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

2 = 2299563 Adapter
NOTE: New adapter for the engine assembly stand. Replacement for 83 30 0 495 189 - 00 2 302.
11 = 0495208 Mat
NOTE: (Checker mat set)
10 = 0495207 Wheel
NOTE: (Rear wheel (with stop))
9 = 0495206 Wheel
NOTE: (Front wheel (without stop))
8 = 0495205 Shaped element
NOTE: (Front shaped pan)
7 = 0495204 Collection pan
NOTE: (Oil collection pan)
6 = 0495203 Shaped element
NOTE: (Rear shaped pan)
5 = 0495202 oddments tray
NOTE: (Oddments tray for small parts)
4 = 0495201 Cover
NOTE: (Protective hood)
3 = 0495200 Crank
Note:
2 = 0495189 Tool
NOTE: (Universal flange). Do not use any more!!! Technically locked. Replaced with a new flange with material number 83 30 2 299 563. All flanges delivered until the end of 2011 will be replaced at no charge. From 2012, only the new flange will be supplied. Also applies to the complete engine mounting stand 00 2 300.
1 = 0495188 Assembly stand
NOTE: available only as complete assembly support 83 30 0 495 187.
